Export to OpenDRIVE / OpenSCENARIO / esmini

drawtonomy turns a hand-drawn scene into an ASAM OpenDRIVE (.xodr) road network plus an OpenSCENARIO (.xosc) scenario, bundled into a single zip you can replay in esmini.

The conversion is intentionally basic — it covers the few shapes that map cleanly onto the ASAM data model and leaves everything else out. This page documents exactly what is converted, what the exported vehicle actually does, and what is out of scope, so the output never over-promises.

Watch the full round-trip

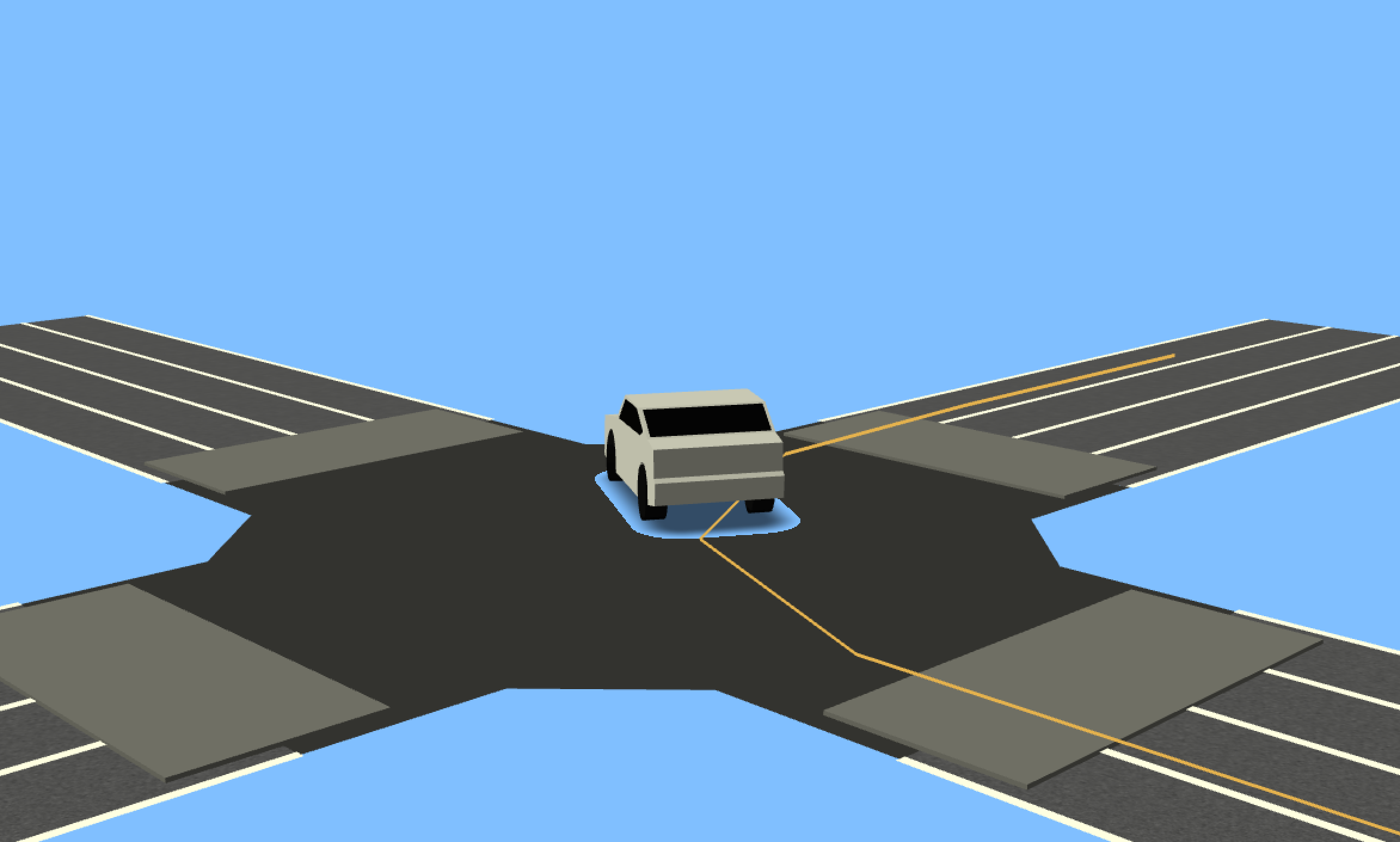

The video below is a single take: draw an intersection, draw a path, generate footprints, export the esmini zip, then replay the exported .xosc in esmini.

One take: draw an intersection, draw a path, generate footprints, export the esmini zip, then replay the exported .xosc in esmini.

Export from the editor

drawtonomy has two editing modes — Scene and Scenario — and the Export submenu is different in each. Switch mode from the hamburger menu, under EDITING. There is no single “export everything” item; you pick the format that matches what you are exporting:

Item in Export	Scene mode	Scenario mode	What you get
`.xodr (OpenDRIVE)`	✅	✅	the road network only, as a standalone `.xodr`
`.osm (Lanelet2)`	✅	✅	the road network as a Lanelet2 `.osm`
`.zip (esmini)`	✅	—	`.xodr` + `.xosc` + assets, bundled to run in esmini
`OpenSCENARIO (.xosc)…`	—	✅	the authored storyboard as a standalone `.xosc`
`Export video…`	—	✅	a `.webm` recording of the run

So there are separate .xodr and .xosc items — they are just split across the two modes. The all-in-one .zip (esmini) bundle lives in Scene mode; the standalone OpenSCENARIO (.xosc)… export (with a version / bundling dialog) lives in Scenario mode.

Grab the esmini bundle (Scene mode)

This is the one-click “give me a runnable zip” path.

Draw your scene (lanes, an intersection, vehicles, a path…).
Make sure you are in Scene mode (hamburger → EDITING → Scene).

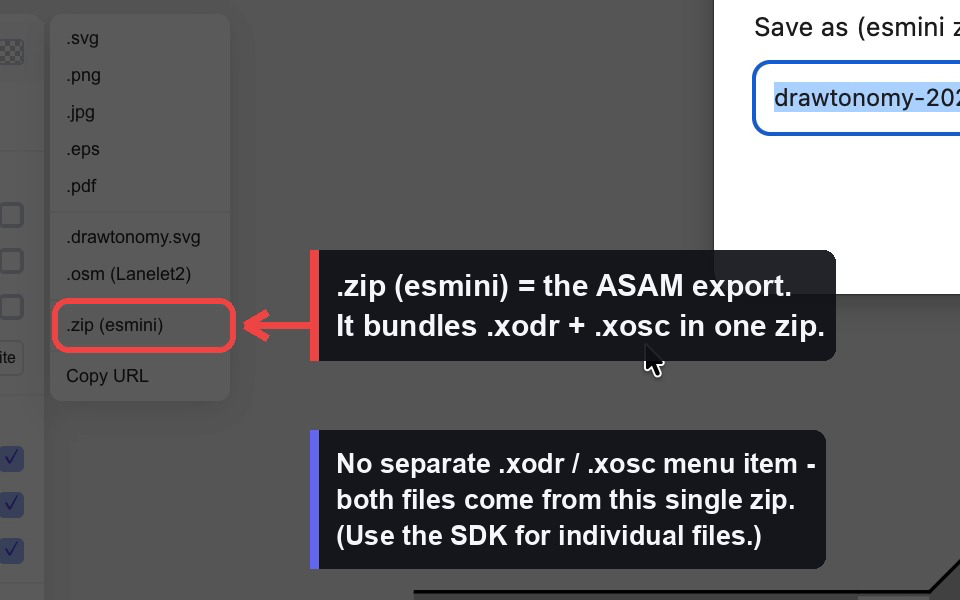

Open the menu → Export → .zip (esmini).
A zip downloads containing the .xodr, the .xosc, and the esmini 3D model assets the scenario references. The base name follows the document name (Untitled-<date>-<time> on a fresh canvas).

The whole current page is exported — there is no “selection only” mode for the esmini bundle.

Grab just the road (`.xodr`, either mode)

Export → .xodr (OpenDRIVE) writes the road network on its own. It downloads immediately, with no file-name prompt — the default name is Untitled-<date>-<time>.xodr (it follows the document name). Reach for this when you only need the map, not a scenario.

Grab just the scenario (`.xosc`, Scenario mode)

If you authored logic in the Scenario editor, Export → OpenSCENARIO (.xosc)… exports that storyboard on its own. It opens a small dialog first — pick the OpenSCENARIO VERSION (1.0, 1.1, or 1.2; 1.3 is shown but not yet selectable — “coming soon”), whether to INCLUDE the road (.xosc only, or .xosc + .xodr), the TARGET SIMULATOR (esmini or Generic), and the FILE NAME — then confirm. See Playback for a walkthrough of that dialog.

Play it back

unzip Untitled-2026-05-30-1200.zip
cd Untitled-2026-05-30-1200
esmini --osc Untitled-2026-05-30-1200.xosc --window 60 60 1024 768

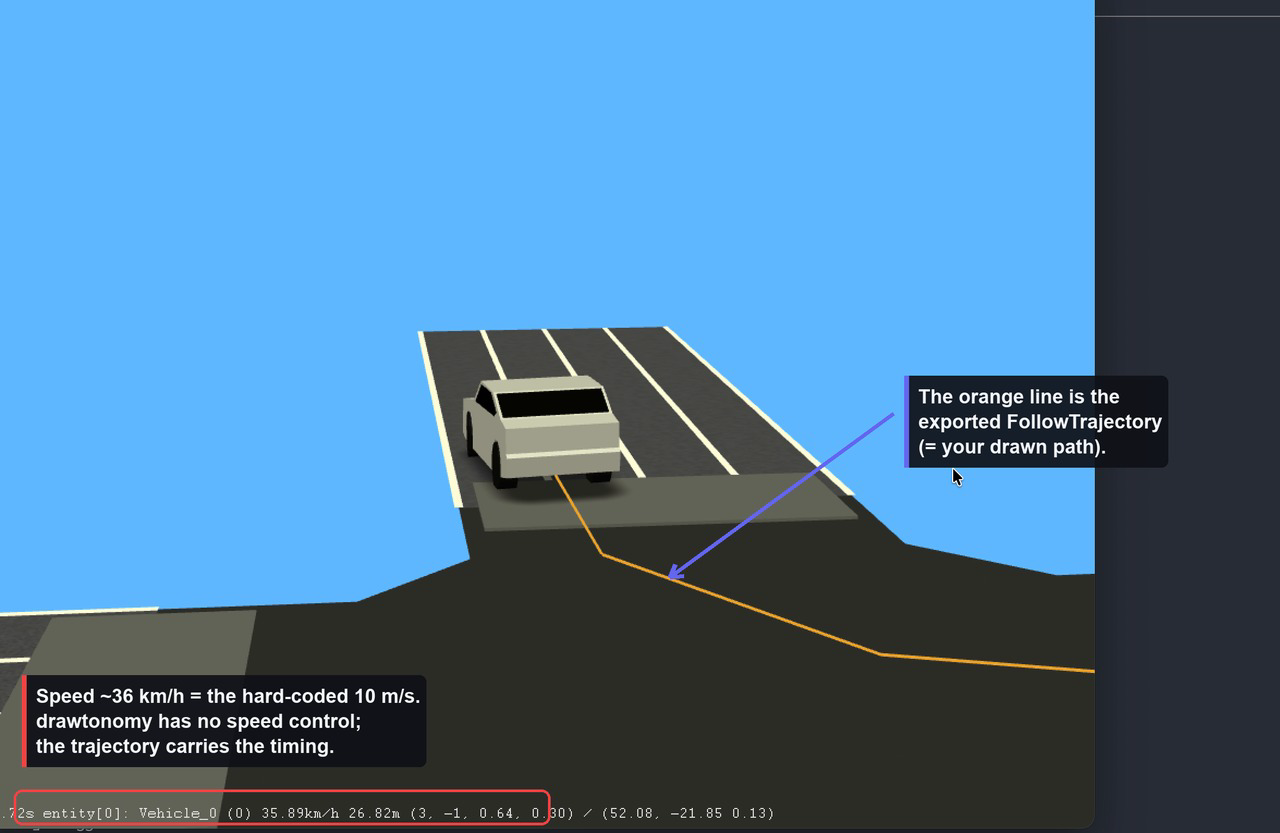

A vehicle following the exported trajectory in esmini

The vehicle drives along the orange line — that line is the FollowTrajectoryAction generated from the path you drew.

What gets converted

Into OpenDRIVE (`.xodr`)

drawtonomy shape	OpenDRIVE element	Notes
Lane	one `<road>`	1 lane = 1 independent road
Traffic light	`<signal>` on the nearest road	vehicle / pedestrian type only
Crosswalk	`<object type="crosswalk">`	placed perpendicular to the road
Polygon (≥3 points)	`<object type="patch">` with `<outline>`	fills intersection/area visuals

Everything else — vehicles, pedestrians, standalone points, free linestrings, text, images — is not written to the .xodr.

How far each road goes:

Analytical geometry — curves are preserved. The road reference line is fitted from the lane’s boundaries and emitted as ASAM analytical geometry: <arc> for circular segments and <paramPoly3> (parametric cubic) for the rest. A curved lane comes out as arcs and parametric polynomials, not as a chain of short straight <line> segments. (A gently curved single lane typically emits a mix such as a couple of <arc> and several <paramPoly3> primitives, with no <line> at all.) <spiral> (clothoid) geometry is not produced.
Per-lane layout. A road drawn from one drawtonomy lane emits a center lane id=0 with type="none" plus a single driving lane id=-1 with type="driving" — the drawn lane itself. It is not a fixed three-lane (+1 / 0 / -1, all driving) template. Multiple lane sections are not represented.
Road marks are hard-coded to a solid white 0.13 m line.
No junctions. Every road carries junction="-1" and no <junction> element is ever generated. Intersections are conveyed only by the polygon patch (visuals) and by predecessor/successor links derived from the lane’s next / prev connections (first entry only).
No elevation / superelevation — elevationProfile and lateralProfile are emitted empty (flat, planar roads).
Scale is fixed at 16.67 px/m; the geographic origin is 0.

Into OpenSCENARIO (`.xosc`)

drawtonomy shape	OpenSCENARIO element
Vehicle	a `<ScenarioObject>` (`<Vehicle>` or `<Pedestrian>`)
Path footprint (the head vehicle)	a `<FollowTrajectoryAction>`

A “pedestrian” is just a vehicle shape whose template name matches a pedestrian/walk pattern — it is emitted as <Pedestrian> instead of <Vehicle>. Lanes, crosswalks, traffic lights and free linestrings are not emitted into the .xosc.

When you export straight from Scene mode — paths and footprints, no authored logic — the scenario is deliberately minimal:

The only dynamic behavior is FollowTrajectoryAction — a time-stamped polyline. There are no speed actions, lane changes, traffic-light responses, collision avoidance, or any interaction conditions.
Each moving entity starts at SimulationTime ≥ 0 and the scenario has a hard StopTrigger at 60 s.

How a path footprint becomes vehicle motion

This is the core of the dynamic export, so it is worth being precise.

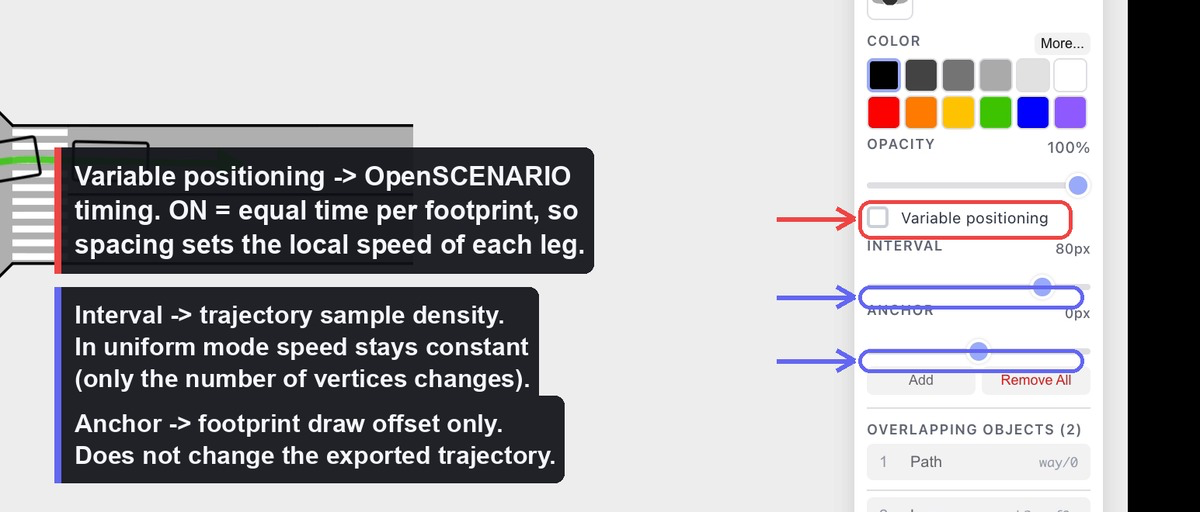

The footprint panel: Variable positioning, Interval and Anchor explained

A path is a linestring you draw, and footprints are ghost copies of a vehicle laid out along it (the trail you see in the editor). On export:

Only the leading footprint (the first one) becomes a moving <ScenarioObject>. The trailing ghosts are a canvas-side preview and are dropped — you get one vehicle that drives the whole path, not a queue.
The path’s control points become the trajectory vertices, in world (ENU) meters.
Each vertex gets a time, and the result is written as a <Trajectory> → <Polyline> of <Vertex time="…"> inside a <FollowTrajectoryAction>.

Speed is fixed (this is the key limitation)

The trajectory is timed at a hard-coded 10 m/s (≈ 36 km/h). drawtonomy has no speed field anywhere in the UI, and the exporter never overrides the default. In esmini you will see the entity report ~36 km/h regardless of what you drew. You do not set a speed — you shape timing through the footprint layout, as described next.

Two timing modes

Whether the path’s “Variable positioning” toggle is on decides how time is distributed along the trajectory:

Uniform (toggle OFF) — footprints sit at equal arc-length Intervals and time is distance / 10 m/s. The motion is constant speed. Changing the Interval only changes how many vertices are written (sample density); the path shape and total duration are unchanged.
Variable (toggle ON) — each footprint is pinned to a position along the path, and the total duration is split into equal time slices between footprints. Where footprints are packed close together the vehicle moves slowly; where they are spread out it moves fast. This is the only way to vary the effective speed along the route.

What you edit ↔ what changes in the `.xosc`

Editor action	Effect on the export
Move a path control point	Trajectory vertex coordinates + total duration (length changes, speed stays 10 m/s)
Drag a footprint in Variable mode	That footprint’s normalized position → the `time` of its vertex → the local (effective) speed of that leg
Toggle Variable positioning	Switches between equal-time and equal-speed timing
Change Interval (uniform mode)	Number of vertices only — trajectory shape and speed are unchanged
Change Anchor	Footprint draw offset only — no effect on the exported trajectory
Change the vehicle template	`vehicleCategory`, 3D model, bounding-box height, performance preset
Resize the vehicle (w, h)	BoundingBox dimensions and axle geometry
Rotate the vehicle	Initial heading (only when the vehicle has no trajectory)
Move the vehicle	Init `WorldPosition` (snapped to the trajectory start if it has one)

So, to answer the common question directly: yes — moving a footprint partway along the path in Variable mode changes the exported speed plan, because it re-times that segment. Moving it in Uniform mode, or changing the Anchor, does not.

Values that are hard-coded

For honesty about the scope, these come from fixed maps or constants, not from anything you can edit: vehicle category/performance presets, 3D model paths, vehicle height by category, axle geometry (derived from size), following mode (position), the 60 s stop trigger, and — most importantly — the 10 m/s trajectory speed.

Programmatic export

The exporter ships in @drawtonomy/sdk and runs without the editor. Unlike the menu, the SDK also lets you emit the two files individually:

import { exporter, createSnapshot } from '@drawtonomy/sdk'

const snapshot = createSnapshot(shapes)

// Bundled (same as the menu):
const { blob, baseName } = exporter.buildEsminiZip(snapshot, {
  baseName: 'my-scene',
})

// Or each format on its own:
const xodr = exporter.exportToOpenDrive(snapshot)
const xosc = exporter.exportToOpenScenario(snapshot, {
  xodrFilename: 'my-scene.xodr',
})

For the full API and extension points, see the Exporter SDK reference.

Versions emitted

Format	Version
OpenDRIVE	1.8
OpenSCENARIO	1.0, 1.1, or 1.2 (default 1.1)

The .xosc export writes OpenSCENARIO 1.0, 1.1, or 1.2 — you choose the schema version in the export dialog. 1.3 is shown but not yet selectable (“coming soon”); esmini and other 1.x tools read the 1.2 output without issue.

Scope at a glance

Supported: roads from lanes with analytical geometry (arc + paramPoly3), so curves are preserved; signals, crosswalks and intersection patches as OpenDRIVE objects; one vehicle per path following a timed trajectory; a working esmini zip you can play immediately.

Not yet supported on the OpenDRIVE side: junctions, spiral (clothoid) geometry, multiple lane sections, road elevation.

On the OpenSCENARIO side the Scene-mode export stays trajectory-only, but speed actions, lane changes, triggers, and multi-actor interaction are all available when you author the behaviour in the Scenario editor — that storyboard is what gets exported.
